保險絲電阻 (FRN)
TYPE: FRN-12 , FRN-25 , FRN-33S , FRN-50S ,FRN-50 , FRN-100S , FRN-200S , FRN-200 , FRN-300S , FRN-300
FUSIBLE RESISISTOR
FRN(THIN FILM TYPE) RFB(ANTI-BURST TYPE)
FKN(WIRE WOUND TYPE) RFA(RATED CURRENT TYPE)

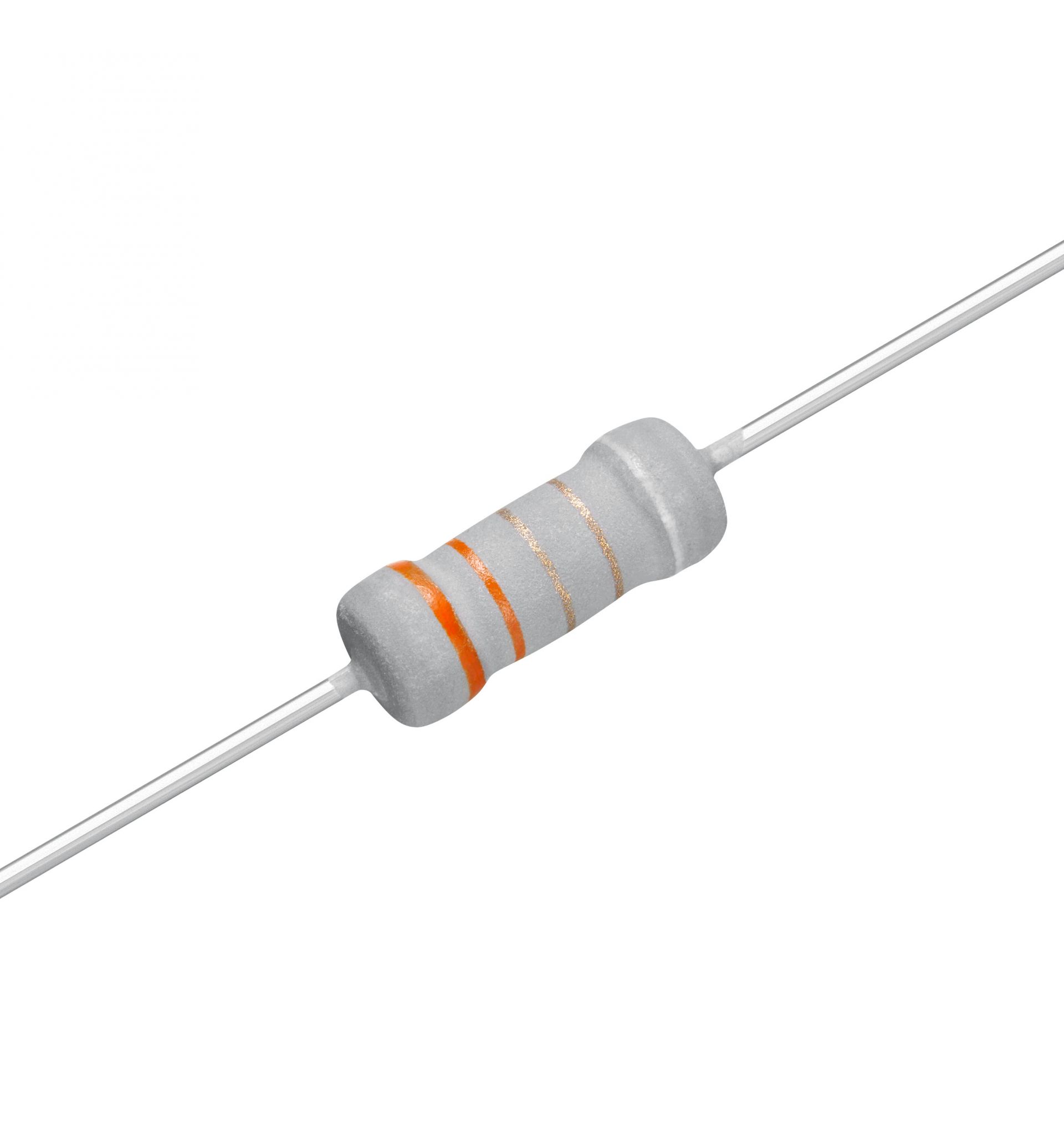

♦FRN
♦FEATURES
-Ideal circuit opening controller, disconnecting
units from overload rating specified.
-Flame retardant coating.
-Body coating is in gray or green, with 4 or 5
color bands or stamping.
-Too low or too high ohmic value can only be supplied case by case.

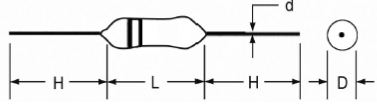

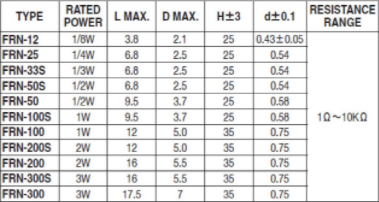

♦RATING＆DIMENSIONS
♦FKN
♦FEATURES
-It is suitable for protecting circuit boards.
-Uniform in fusing time.
-Noncombustible insulation coating.
-Low temperature coefficient.

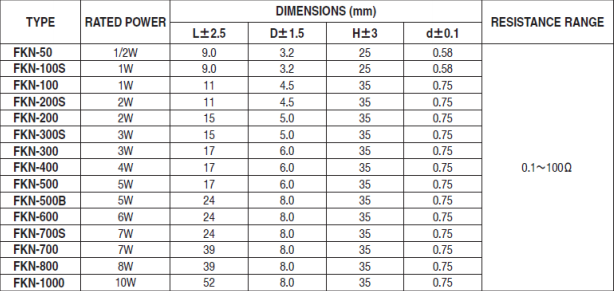

♦RATING＆DIMENSIONS
♦RFB
♦FEATURE
The ANTI-BURST Type wire wound of film-type fusible resistors can provide reliable and environmentally safe fusing behavior It's also reliable in performance and endurance for surge voltage.

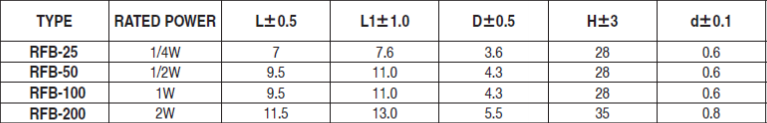

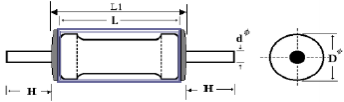

♦DIMENSIONS
♦FRA
♦FEATURES
-The rated current fusible resistor combines time delay
characteristics with proven reliability.
-Big electric current.
-High stability.

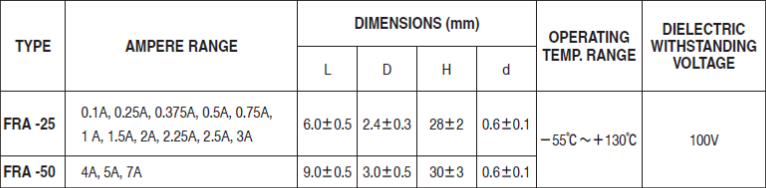

♦RATING＆DIMENSIONS
Ideal circuit opening controller, disconnecting units from overload rating specified.
Flame retardant coating.
Body coating is in gray or green, with 4 or 5 color bands or stamping.
Too low or too high ohmic value can be supplied only case by case.
