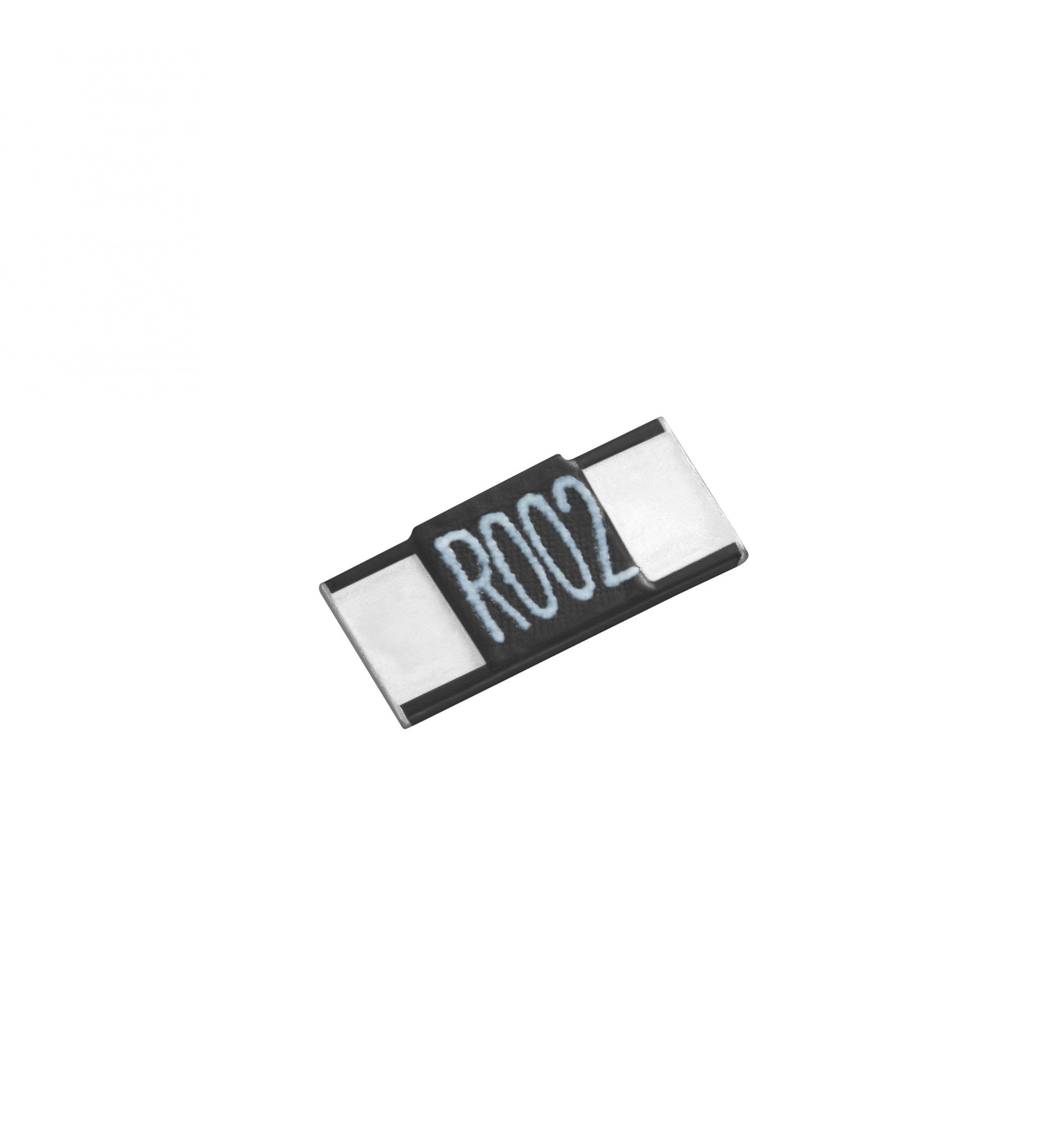

合金晶片電阻 (RCCS)
TYPE：RCCS1206 , RCCS2010 , RCCS2512 , RCCS2512
HIGH POWER CHIP RESISTOR
RCCS TYPE
♦FEATURES
-High Wattage Rating Up to 3W
-Low TCR ±50 ppm to ±150ppm/℃
-Resistance Values from 0.5 to 100m ohm
-Lower Inductance
-Package sizes : 1206,2010,2512
♦APPLICATION
-NB (for Power Management)
-MB (for Power Management)
-SWPS (DC-DC Converter, Charger, Adaptor)
-Monitor (for Power Management)
-Power Supply
♦DIMENSIONS
-Green coating: IR reflow soldering only.
-Black coating : Wave or IR reflow soldering.
♦TAPING SPECIFICATIONS
High Wattage Rating Up to 3W
Low TCR ±50 to ±150ppm/℃
Resistance Values from 0.5 to 100m ohms
Operating Temp Range: -55℃~+170℃
