晶片電容 (CC)
TYPE : 0201 , 0402 , 0603 , 0805 , 1206 , 1210 , 1808 , 1812 , 2220
CHIP CAPACITOR
CC TYPE
♦FEATURES
-Thin layers in ceramic dielectric and multilayer technology provides large capacitance.
-Full monolithic structure provides high mechanical intensity.
-Accurate dimensions ensure high yield rate by automatic mounting process.
-Simple metal-ceramic monolithic construction provides high stability and reliability with a wide temperature range.
-Symmetrical construction with no polarity facilitate automatic mounting.
-Leadless construction minimizes stray capacitance and residual inductance, which ensures the electric circuit works as designed.

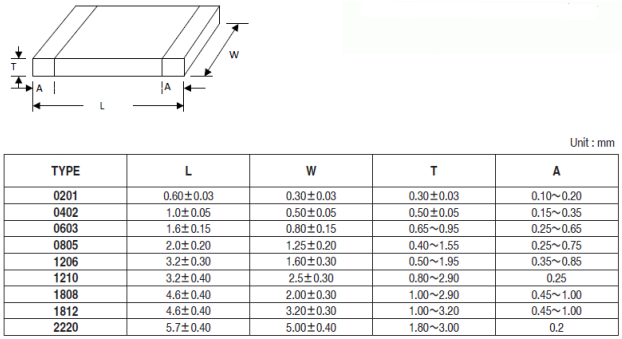

♦DIMENSIONS
♦TAPING SPECIFICATIONS

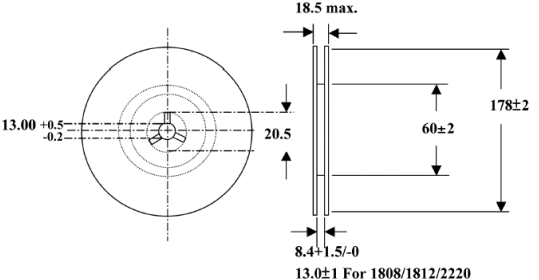

♦REEL DIMENSION
Thin layers in ceramic dielectric and multilayer technology provides large capacitance.
Full monolithic structure provides high mechanical intensity.
Simple metal-ceramic monolithic construction provides high stability and reliability with a wide temperature range.
