熱敏電阻 (NTC)
TYPE: 4PIN , 5PIN , 6PIN , 7PIN , 8PIN , 9PIN , 10PIN , 11PIN , 12PIN , 13PIN , 14PIN
POWER THERMISTOR

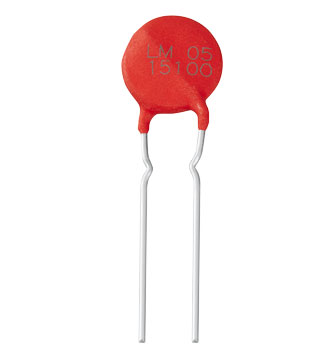

NTC (LEAD TYPE)
♦INTRODUCTION
NTC THERMISTOR is a rush current suppressor which exhibits a large decrease in resistance whenAC/DC
current starts flowing at loop. For a negative temperature coefficient, the devices provide prevention temperature compensation and temperature against high peak inrush current at turn-on, temperature compensation and temperature sensing,especially in power supplies where charging capacitors initially present extremely low impedance.Rush current suppressor can effectively limit surge currents for several seconds through an initial high resistance, therefore, critical components extend their life. The products are manufactured of a specially-formulated metal oxide ceramic
material and coated with silicon for insulation.
♦FEATURES
-Special applications are available upon request.
-Special kink leads are available upon request.
-Special marking to customer’s needs.
-Special coating material:350℃ sillcon
-Tolerance available: ±15%, ±10, ±5%
♦DIMENSIONS
Rush current suppressor is NTC THERMISTOR which exhibits a large decrease in resistance when AC/DC current starts flowing at loop. For a negative temperature coefficient, the devices provide prevention.
