碳膜電阻 (CR)
TYPE: CR-12 , CR-25S , CR-25 , CR-33S , CR-50S , CR-50 , CR-100SS , CR-100S , CR-100 , CR-200SS , CR-200S, CR-200 , CR-200B , CR-300S , CR-300

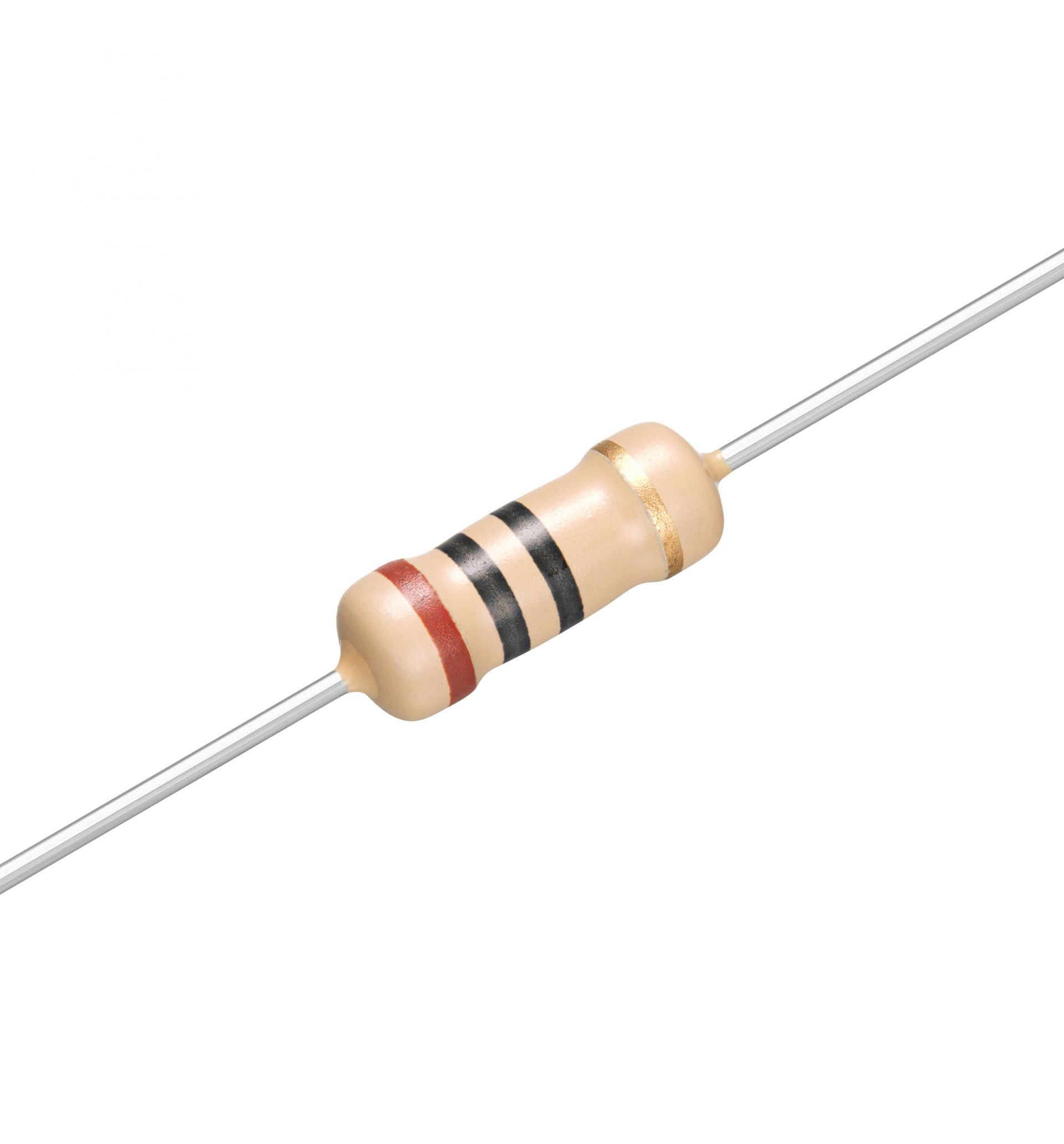

CARBON FILM FIXED RESISTOR
CR(EPOXY COATING TYPE)
♦INTRODUCTION
Carbon Film Resister is the earliest and most popular type of resistor which can be used in almost all kinds of electronic products. The resistive element is a high grade ceramic rod which is a homogenous film of pure carbon that is deposited by vacuum heating process to produce electricity conductivity on the surface. Fully automation and mass production on capping, sorting,cutting, welding, coating and double-checking which comes out stable quality, high reliability and economic cost for SYNTON-TECH's CR series.
♦FEATURES
-Met the requirements of JIS-C-5201 and MIL-R-22684B!
-The most economic industrial investment!
-Quicker dissipation of heat!
-Lower temperature rise!
-Small shelf life drift!
-Wider resistance range:1Ω~10MegΩ
-Tolerance available:±5%,±2%,±1%
-Wattage available:1/16W,1/8W,1/6W,1/4W,1/3W,1/2W,1W,2W,3W
-Variety of packaging:Bulk,Tape in Box(Ammopack T-26,T-52,T-74),Tape on Reel, Cut-and-Formed.

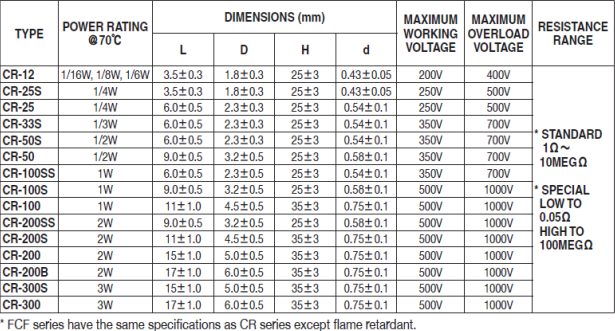

♦SPECIFICATIONS
The earliest and most popular type of resistor is carbon film resistor which can be used in almost all kinds of electronic products. The resistive element is a high grade ceramic rod which is a homogenous film of pure carbon that is deposited by vacuum heating process to produce electricity conductivity on the surface.
CARBON FILM FIXED RESISTOR
CR(EPOXY COATING TYPE)
♦INTRODUCTION
Carbon Film Resister is the earliest and most popular type of resistor which can be used in almost all kinds of electronic products. The resistive element is a high grade ceramic rod which is a homogenous film of pure carbon that is deposited by vacuum heating process to produce electricity conductivity on the surface. Fully automation and mass production on capping, sorting,cutting, welding, coating and double-checking which comes out stable quality, high reliability and economic cost for SYNTON-TECH's CR series.
♦FEATURES
-Met the requirements of JIS-C-5201 and MIL-R-22684B!
-The most economic industrial investment!
-Quicker dissipation of heat!
-Lower temperature rise!
-Small shelf life drift!
-Wider resistance range:1Ω~10MegΩ
-Tolerance available:±5%,±2%,±1%
-Wattage available:1/16W,1/8W,1/6W,1/4W,1/3W,1/2W,1W,2W,3W
-Variety of packaging:Bulk,Tape in Box(Ammopack T-26,T-52,T-74),Tape on Reel, Cut-and-Formed.
♦SPECIFICATIONS
The earliest and most popular type of resistor is carbon film resistor which can be used in almost all kinds of electronic products. The resistive element is a high grade ceramic rod which is a homogenous film of pure carbon that is deposited by vacuum heating process to produce electricity conductivity on the surface.
