防爆式保險絲電阻 (RFB)
TYPE: RFB-25 , RFB-50 , RFB-100 , RFB-200
FUSIBLE RESISISTOR
FRN(THIN FILM TYPE) RFB(ANTI-BURST TYPE)
FKN(WIRE WOUND TYPE) RFA(RATED CURRENT TYPE)
♦FRN
♦FEATURES
-Ideal circuit opening controller, disconnecting
units from overload rating specified.
-Flame retardant coating.
-Body coating is in gray or green, with 4 or 5
color bands or stamping.
-Too low or too high ohmic value can only be supplied case by case.

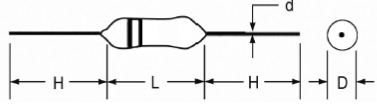

♦RATING＆DIMENSIONS
♦FKN
♦FEATURES
-It is suitable for protecting circuit boards.
-Uniform in fusing time.
-Noncombustible insulation coating.
-Low temperature coefficient.

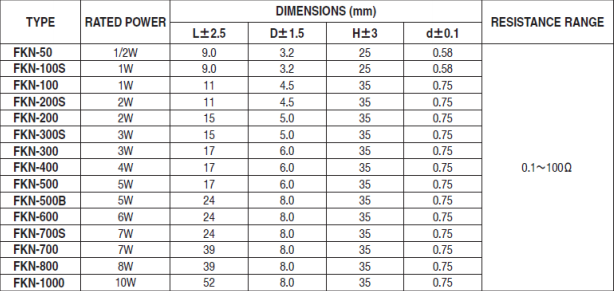

♦RATING＆DIMENSIONS
♦RFB
♦FEATURE
The ANTI-BURST Type wire wound of film-type fusible resistors can provide reliable and environmentally safe fusing behavior It's also reliable in performance and endurance for surge voltage.

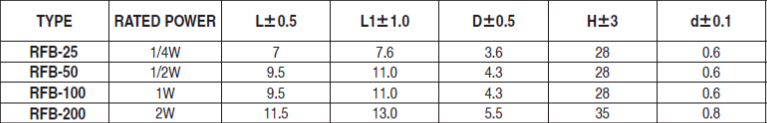

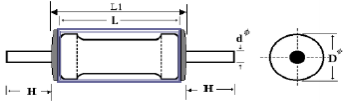

♦DIMENSIONS
♦FRA
♦FEATURES
-The rated current fusible resistor combines time delay
characteristics with proven reliability.
-Big electric current.
-High stability.

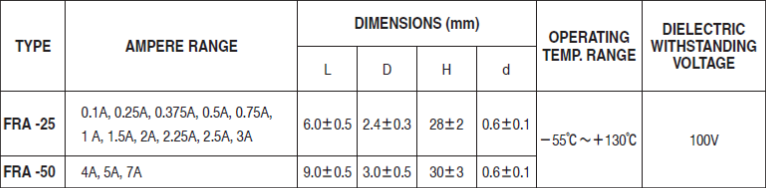

♦RATING＆DIMENSIONS
The Anti-Burst Type wire wound or film - Type fusible resistors can provide reliableand environmentally safe fusing behavior, reliable performance and endurance tosurge voltage.
防爆式繞線或皮膜保險絲, 提供無爆裂與保護環境的安全熔斷特性, 電阻供應準確的熔斷性能, 以及額定功率下作業的持久高穩定性.防爆式繞線保險絲 (RFB-TYPE) 通過UL認證, 提供無爆裂與保護環境的安全熔斷特性.
FUSIBLE RESISISTOR
FRN(THIN FILM TYPE) RFB(ANTI-BURST TYPE)
FKN(WIRE WOUND TYPE) RFA(RATED CURRENT TYPE)
♦FRN
♦FEATURES
-Ideal circuit opening controller, disconnecting
units from overload rating specified.
-Flame retardant coating.
-Body coating is in gray or green, with 4 or 5
color bands or stamping.
-Too low or too high ohmic value can only be supplied case by case.
♦RATING＆DIMENSIONS
♦FKN
♦FEATURES
-It is suitable for protecting circuit boards.
-Uniform in fusing time.
-Noncombustible insulation coating.
-Low temperature coefficient.
♦RATING＆DIMENSIONS
♦RFB
♦FEATURE
The ANTI-BURST Type wire wound of film-type fusible resistors can provide reliable and environmentally safe fusing behavior It's also reliable in performance and endurance for surge voltage.
♦DIMENSIONS
♦FRA
♦FEATURES
-The rated current fusible resistor combines time delay
characteristics with proven reliability.
-Big electric current.
-High stability.
♦RATING＆DIMENSIONS
The Anti-Burst Type wire wound or film - Type fusible resistors can provide reliableand environmentally safe fusing behavior, reliable performance and endurance tosurge voltage.
防爆式繞線或皮膜保險絲, 提供無爆裂與保護環境的安全熔斷特性, 電阻供應準確的熔斷性能, 以及額定功率下作業的持久高穩定性.防爆式繞線保險絲 (RFB-TYPE) 通過UL認證, 提供無爆裂與保護環境的安全熔斷特性.
